4K Video Soundbar for Huddle Rooms with Intelligent Fill Light

Specifications

Camera

• 4K optics lens, 120° FOV, up to 4X zoom
• Sony 4K sensor: ultra-crystal-clear image in any lighting
• Frame rates: (16:9) 4K, 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• Adjustable audio fence: freedom to define your meeting area

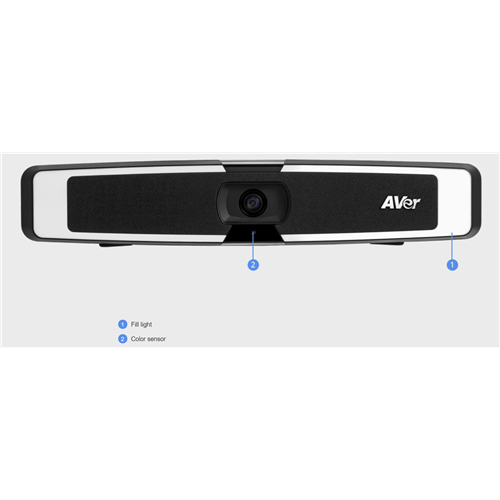

• Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment*
• SmartFrame: automatic FOV adjustment to fit all participants
• SmartSpeaker: Voice triggered tracking people or specific preset areas.
• Mirror, flip, AE, white balance: auto/manual override via PTZApp2
• Minimum focus distance: 60 cm
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
• 10 camera presets (through remote control and IP web page)
• *The best lighting distance is for people sitting within 1meter far from the camera

Audio

• Beamforming microphone array: 5 microphones, 4 m pickup range
• Echo cancellation
• Noise suppression
• Supports expansion microphone

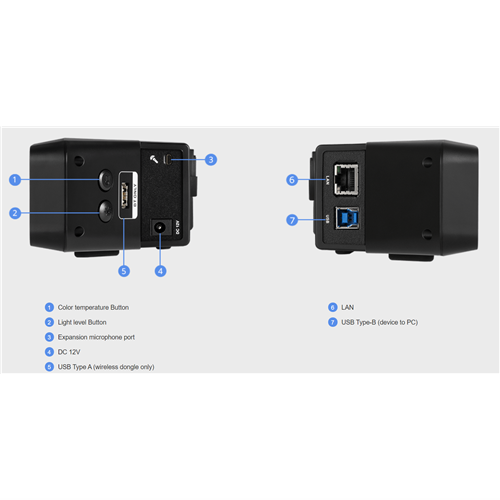

Connectivity

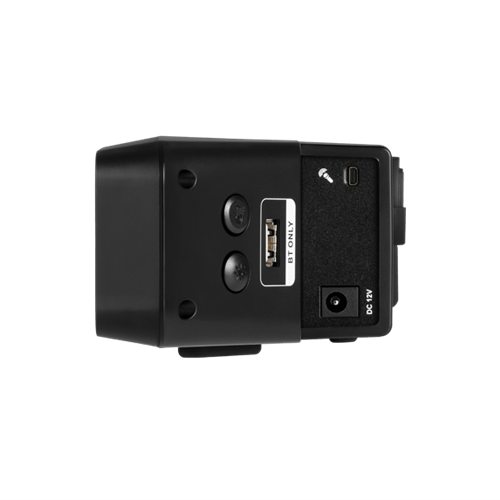

• 12V/2A power adapter
• Mini-B for expansion microphone connection
• USB Type-B 3.1 connector, backward compatible with USB 2.0

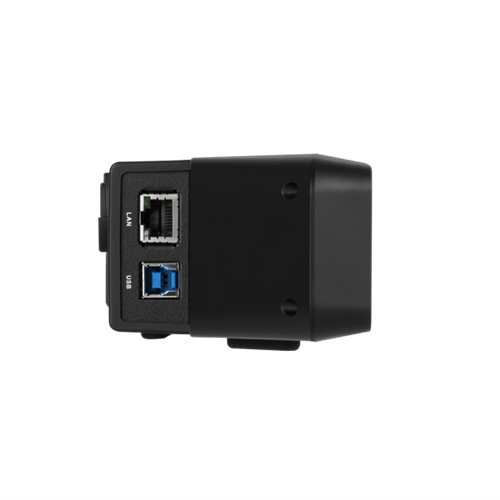

• RJ45 port for Ethernet
• USB 2.0 Type-A for wireless connection*
• *Optional wireless dongle is required to connect with mobile phone

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264
• Network protocols: RTSP, RTMP*
• *When USB streaming is in use, RTSP and RTMP are not available.

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UAC 1.0 (USB audio)

Control

• IR remote control
• WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
• UVC/UVA plug-and-play
• PTZApp 2

Mount

• Screen mount kit (included)
• Camera wall-mount bracket (optional)

Optional Accessories

• Wall mount and mounting screws
• 10m/20m expansion microphone
• 10m/20m/30m USB 3.1 extension cable
• USB 3.1 GEN1 Type-B to Type-A cable, 3 m

Warranty

• Camera: 3 years
• Accessories: 1 year

System Requirement

• Windows® 7/10
• MacOS X 10.7 or later
• Google Chromebook™ version 29.0.1547.70

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

Power Supply

• AC 100V–240V, 50/60 Hz
• Consumption: 12V/2A

Free Applications for Meeting Collaboration

(Free Apps support on Windows® and Mac® computers)

• EZManager 2: Camera Central Management Software
  • Remotely group FW/SW upgrades, control the camera, and manage settings
• PTZApp 2: Camera Setting Software
  • View live video, people counting number, meeting interval information
  • Enable Skype for Business far-end control
  • Upgrade firmware automatically or manually
  • Control the camera
  • Set parameters and adjust the camera image
  • Diagnose operating status
• EZLive: Broadcasting Software
  • Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Environmental Data

• Operation temperature: 0 ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20 ~ 60°C
• Storage humidity: 20% ~ 80%

Dimensions

• Package dimensions: 406(L)x146(W)x189(H) mm
• Package weight: 2.358 kg
• Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg
• Remote control: 149.72 x 42.3 x 19.29 mm/50g

Package Contents

• VB130 unit
• Power cable 10 ft (3 m)
• USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
• QR code card
• Screen mount and screws
• Remote control
• Tripod screw

Compatible Applications

• Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
• *For 4K UHD support, please check system/hardware requirements with your software application provider.
